MONA Capture

This doc goes over the MONA Capture functionality.

The MONA Capture (Beta) allows users to control a free moving camera, separated from their player to create more interesting and interactive content with the spaces they visit.

This initial iteration of MONA Capture must be added to the Space in Unity in order to be used. Further iterations of Mona Capture will allow the feature to be used (optionally) in all MONA Spaces.

Installing Visual Scripting

You may need to install the 'Visual Scripting' tool for capture to work.

• Open the Package Manager using 'Window > Package Manager'.

• Select the 'Packages : In Project' at the top left. If 'Visual Scripting' is not in the list below, you will need to install it.

• Select the 'Packages : Unity Registry', scroll down to Visual Scripting. And select 'Install' in the description window.

Install The Visual Scripting Package (if it isn't installed already)

Installing the Mona Capture

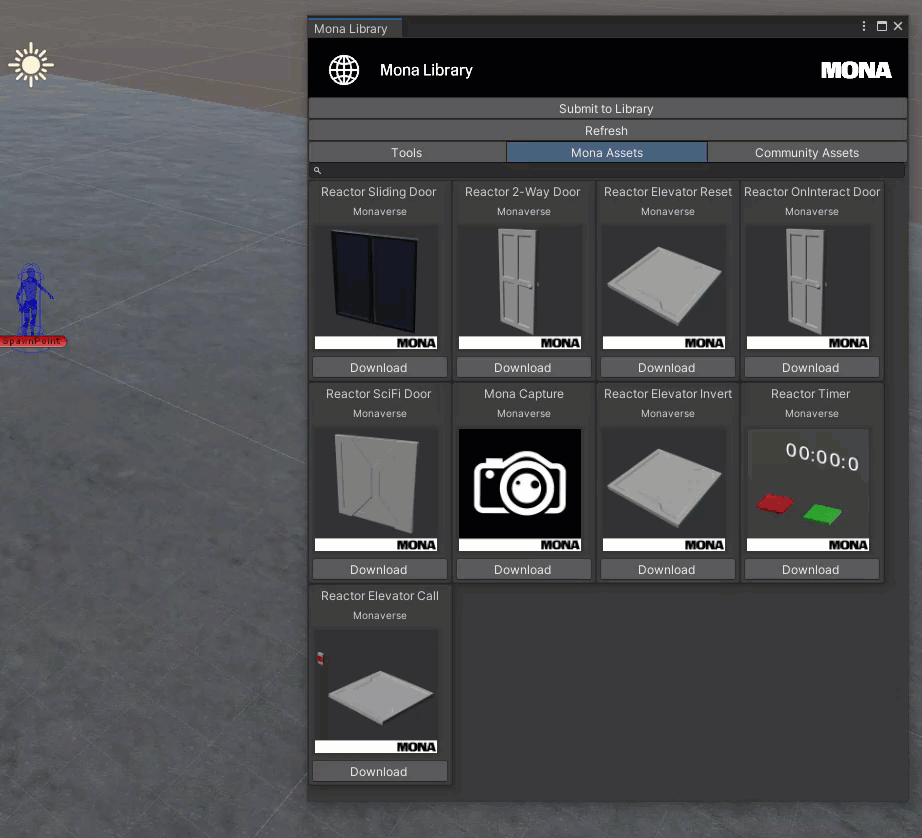

• In the MONA Library, select the MONA Assets category.

• Select the 'Mona Capture' item and select 'Download'.

• Select 'Import' in the Import Unity Package popup.

Add the Mona Capture Asset...

Using the MONA Capture

• Drag the MONA Capture asset from MonaLibrary / Mona Capture folder into the Space Parent asset in the Space scene.

• You may need to Import the TextMesh Pro asset, if the popup comes up, just select 'Import TMP Essentials'.

• Make sure to click on the 'MainCamera' in the MonaCapture asset to initialise the visual scripting. If you do not do this the Mona Capture camera will not work in the space.

• Once you build your space and test in playground or add to your Mona Wallet, you can press '0' to use the Capture tool.

• Hit F2 to pull up the hotkeys for more information.

• You can use any screen capture tool such as OBS Studio or the NVidia Shadowplay to record the screen. For more information on this, go to Creating an Image & Video Preview.

F2 for Capture details

Hotkeys

F2	Help
0	Toggle Free Camera
Mouse	Rotate Camera
W	Move Forward
S	Move Back
A	Move Left
D	Move Right
Q	Roll Left
E	Roll Right
Space	Move Up
Ctrl	Move Down
Shift	Boost Move Speed
Middle Scroll	Change Field of View
Increase Speed	Increase Speed
Decrease Speed	Decrease Speed
Reset Position	Reset Position
Save Position	Save Position
Load Position	Load Position
Toggle Mona UI	Toggle Mona UI
Toggle Reticle	Toggle Reticle
Toggle Avatar Tags	Toggle Avatar tags
Fullscreen	Fullscreen
