Warp Volumes

PreviousPlayer Property Volumes (PPV's)NextAdding Audio

Last updated 1 year ago

Was this helpful?

A Warp Volume allows a builder to teleport, or warp, a user from one location to another in the same Space. It is also possible to warp the player once they interact with the asset.

It uses any game object transform in the space as a target. You can assign the orientation to face the same direction as the target object, or it will keep the same orientation as when you teleport.

Setting up a Basic Warp Volume

  • Create an empty gameobject

  • Assign the Warp Volume component

  • Add a Box Collider (other collider types should work)

  • Make sure to make the collider 'Is Trigger' to true. If you don't do this the collider will simply be a collider and not work.

  • Adjust the box collider so that as soon as the user connects with it, they will be warped

  • Drag the asset that you would like to warp to onto the Warp Target field

    • An empty game object would be a good example

  • Select if the orientation is to the target (Use Rotation) or not

    • If you select local and pivot at the top right, the front direction is the blue arrow

Setting up an Interactive Warp Volume

  • Create an empty gameobject

  • Assign the 'Mona Warp' component

  • Add a Box Collider (other collider types should work)

  • Select 'Use Rotation' if you want the user to face the direction of the warp target.

  • Select the 'On Interact' option in the Mona Warp component.

  • Make sure to make the collider 'Is Trigger' to false. If you don't do this the collider will not be interactable. Note the collider has to be a physical collider due to how Raycasting is done in Unity.

  • Adjust the box collider with the Edit Collider button to take up the area that the user can 'see' it. When the user reticle is over this asset, they can press 'E' to warp.

  • Drag the asset that you would like to warp to onto the Warp Target field

    • An empty game object would be a good example

  • Select if the orientation is to the target (Use Rotation) or not

    • If you select local and pivot at the top right, the front direction is the blue arrow

⬛
Warp Volumes Video Tutorial
Set the 'Is Trigger' to true

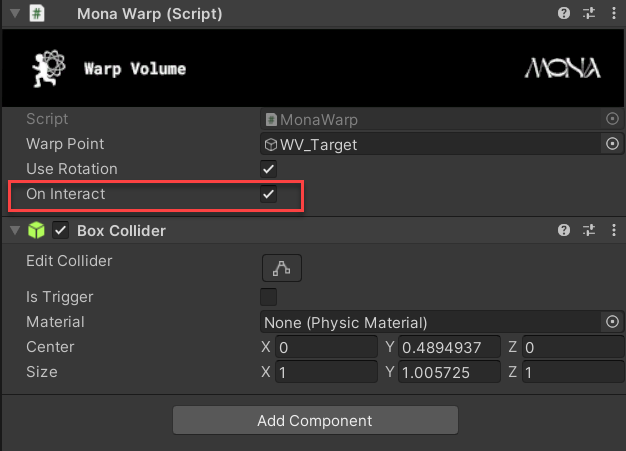

Select the On Interact Option
Make sure the Is Trigger is false
